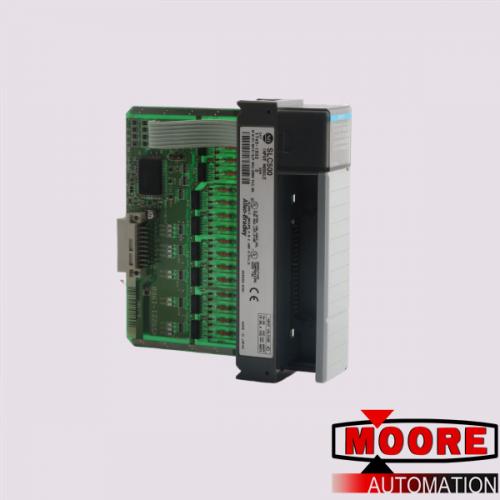

1746-IB32 | | discrete input module

Brand/ Manufacturer:
Dimensions:
3.5cm*13cm*14.5cm
Weight:
0.14kg
Country of Origin: :
USA
Description:
SLC 500 discrete input module

Inquiry now

Mfr. Part Number:	1746-IB32

Manufacturer:

Description:	The 1746-IB32 is an SLC 500 input module. This is a 24VDC sinking input module that features Thirty-Two (32) sink input channels, accepting signal voltage range of 15-30VDC at 50 Deg. Celsius and 15-26.4VDC at 60 Deg. Celsius.

Full Description:	The 1746-IB32 is an SLC 500 discrete input module. This module operates at a nominal voltage of 24VDC and at a voltage range of 15-30V DC @ 50 °C (122 °F) or 15-26.4V DC @ 60 °C (140 °F). This module is typically used to interface electrical devices such as Switches, Sensors, Auxiliary contacts and other binary or ON/OFF devices.

[email protected] + 86 18030235313 dddemi33 2851195473

Manufacturer	Automation
Part Number/Catalog No.	1746-IB32
Power Dissipation, per channel	0.20 Watts
Input Delay Time, OFF to ON	3 ms
Operating Voltage Range	15 to 30V dc at 50° C; 15 to 26.4V dc at 60° C.
Input Voltage	24VDC
No. of Inputs	Thirty-Two (32) Inputs
Power Dissipation, per module	6.65 Watts
Brand
Backplane Current at 24 Volts	0 mA
Series	SLC 500
Module Type	Digital DC Input Module

The 1746-IB32 is an SLC 500 discrete input module. This module operates at a nominal voltage of 24VDC and at a voltage range of 15-30V DC @ 50 °C (122 °F) or 15-26.4V DC @ 60 °C (140 °F). This module is typically used to interface electrical devices such as Switches, Sensors, Auxiliary contacts and other binary or ON/OFF devices. Up to Thirty-Two (32) input signals may be wired to this module via the embedded 32 input module channels.

It is compatible for use with any SLC 500 processor, ideally with the SLC 500 Modular Style hardware. It supports being installed locally, along the controller or to an expansion I/O rack or to a Remote I/O chassis along an SLC 500 communication adapter. It directly installs to any available slot of the 1746 chassis except slot 1 which is reserved for the SLC 500 controller.
