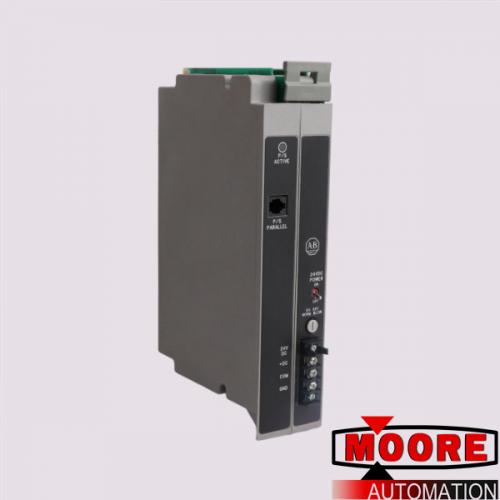

1771-P5E | | input voltage

Brand/ Manufacturer:
Dimensions:
6.1cm*17cm*27.4cm
Weight:
1.12kg
Country of Origin: :
United States
Description:
Interface Module

Inquiry now

Mfr. Part Number:	1771-P5E

Manufacturer:

Description:	PLC 5 Power Supply, 24 Volts DC (Selectable Power-Loss Time Delay) Nom Input Voltage, 20.5-30 Volts DC Input Voltage Range, 8 Amperes (at 5 Volts DC) Backplane Output Current

Full Description:	The module has 24V DC nominal input voltage and supplies an output voltage of 5.06V DC with an output current of 8A (max). It has an input power of 57W and dissipates 4W at 2A, 7W at 4A, 12W at 6A, and 17W at 7A.

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Manufacturer	Automation
Brand
Part Number/Catalog No.	1771-P5E
Module Type	Power Supply
Nom Input Voltage	24 Volts DC (Selectable Power-Loss Time Delay)
Input Voltage Range	20.5-30 Volts DC
Max Real Input Power	57 Watts

The 1771-P5E Power Supply Module by is a double slot, chassis-based power supply module with 20.5-30V DC input voltage and a selectable power loss delay feature and it provides the 1771 Chassis with 5V DC power. The module has 24V DC nominal input voltage and supplies an output voltage of 5.06V DC with an output current of 8A (max). It has an input power of 57W and dissipates 4W at 2A, 7W at 4A, 12W at 6A, and 17W at 7A.

The 1771-P5E is uniquely designed to connect with another in parallel for a greater chassis current and must not be connected in parallel with any other power supply module. It provides circuit protection via the 5A, 32V DC Normal Bow fuse, and can also provide branch circuit protection at 15A maximum.

The 1771-P5E Power Supply Module by is a double slot, chassis-based power supply module with 20.5-30V DC input voltage and a selectable power loss delay feature and it provides the 1771 Chassis with 5V DC power.
