in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.6x1.4x120cmWeight:
0.05kgCountry of Origin: :
USADescription:

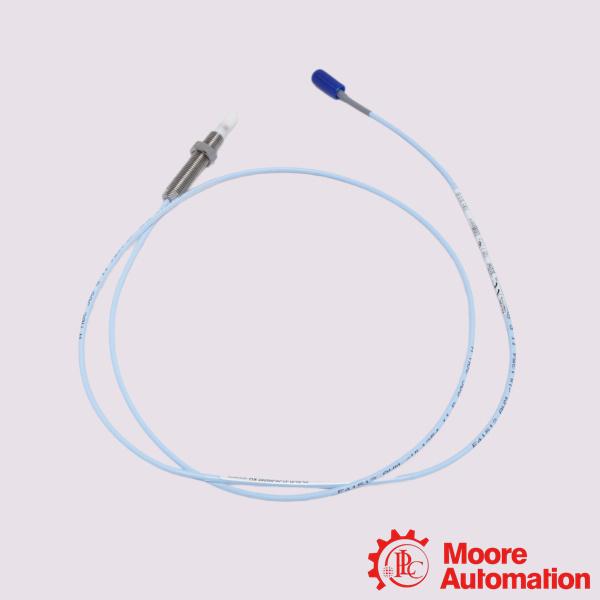

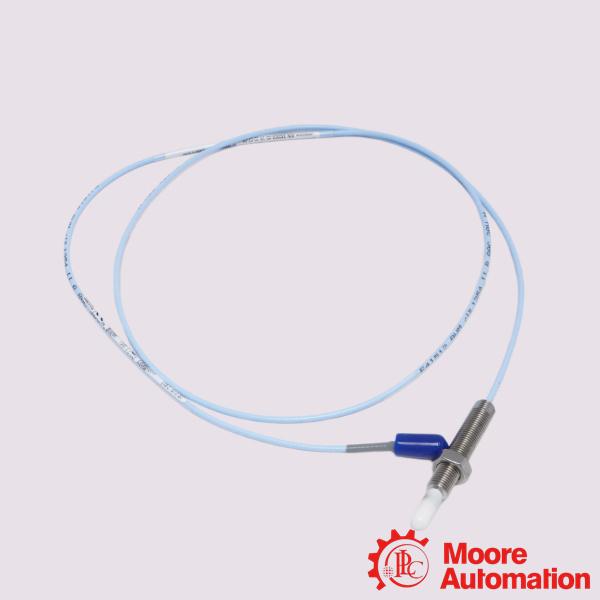

Bently Nevada 330908-51-82-10-02-00 3300 NSv Proximity Probes
| Mfr. Part Number: |
330908-51-82-10-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: [email protected]
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330908-51-82-10-02-00 is a 3300 XL NSv proximity probe for machinery condition monitoring in tight spaces or on small targets. It provides non-contact eddy-current measurements where standard 5 mm or 8 mm probes cannot fit due to side-clearance restrictions.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.
Application:
Centrifugal and Reciprocating Compressors: Ideal for monitoring critical internal components in restricted layouts where side-view clearance or counterbore restrictions prevent standard sensor usage.
Small Steam and Gas Turbines: Deployed on smaller or auxiliary turbomachinery to track dynamic shaft motion without hitting housing boundaries.
Industrial Gearboxes: Perfect for confined gear casings where the proximity probe must be placed extremely close to internal walls or gears without detecting the casing itself.
Small Scale Pumps and Generators: Used on high-speed, fluid-lubricated smaller pumps where the shaft diameter is under 51 mm (2 inches).
Frequently Asked Questions (FAQ)
Q:What is the function of the ClickLoc connector?
A:The "02" option specifies a miniature coaxial ClickLoc connector. This connection system self-locks to prevent the probe and extension cable from vibrating loose during machine operation, eliminating the need for special termination tools.
Q:Can I use this probe with a standard 8mm Proximitor sensor?
A:No. The 3300 NSv probe features distinct electrical characteristics. It must be paired exclusively with a 3300 XL NSv Proximitor Sensor and a 3300 NSv Extension Cable to prevent major calibration errors.
Q:What is the linear range and scale factor for this probe?
A:When paired with the matching NSv Proximitor Sensor, it delivers a linear range of 1.5 mm (60 mils). The standard sensitivity/Incremental Scale Factor (ISF) is 7.87 V/mm (200 mV/mil).
If you need other brands products like below, please feel free write email to [email protected]
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330908-51-82-10-02-00 |
|
Unthreaded Length Option |
5.1 in |
|
Overall Case Length Option |
8.2 in |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Total Length Option |
1.0 meter (39 in) |
|
Connector and Cable-Type Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
