Product Description:

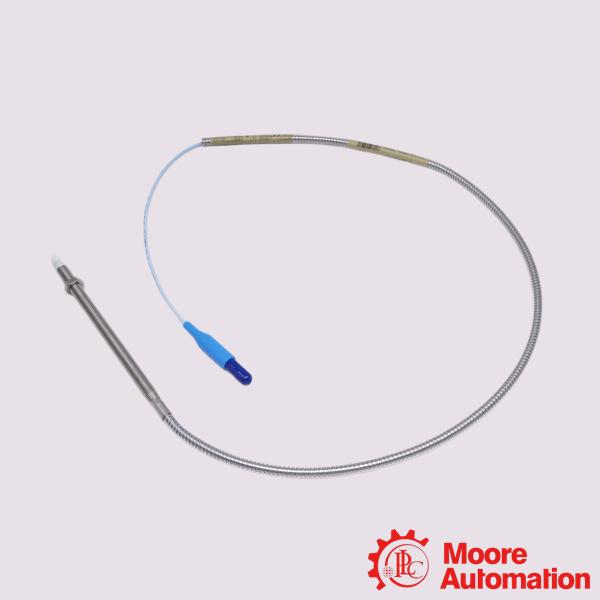

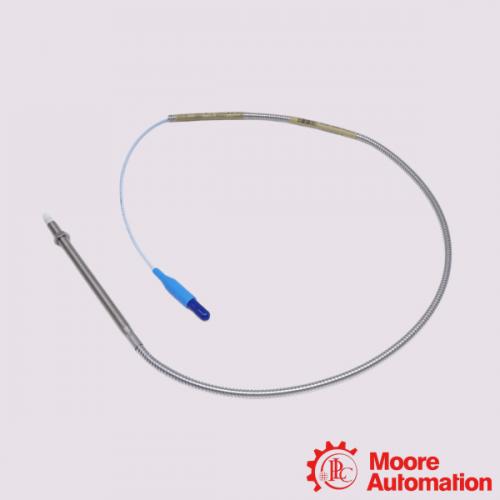

The Bently Nevada 330909-00-10-05-02-CN is an eddy-current proximity probe belonging to the 3300 XL NSv Proximity Transducer System. It is for non-contact machinery vibration and position monitoring in highly confined industrial locations.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:Can I mix this probe with standard 3300 XL 5mm or 8mm components?

A:No. The 3300 NSv (Narrow Side View) platform utilizes entirely different electrical tuning and internal geometry. Mixing an NSv probe with a standard 3300 XL 8mm extension cable or Proximitor sensor will ruin the scale factor linearity, yielding entirely inaccurate system readings. Always ensure the extension cable and driver carry the explicit NSv designation.
Q:How does the sensor operate?
A:The probe relies entirely on the eddy current principle. The paired Proximitor sensor drives a radio frequency (RF) signal through the extension cable straight to the tiny coil inside the probe tip. As the target shaft moves closer or farther away, it disrupts the RF field, changing the impedance which translates into highly precise voltage variations representing physical displacement.

Q:What does the stainless steel armor provide?
A:The default 330909 prefix indicates that the cable is wrapped in a flexible, protective stainless steel armor. This shielding safeguards the delicate coaxial cable against mechanical pinching, abrasion, sharp edges, and harsh fluids within industrial compressor housings.
