Product Description:

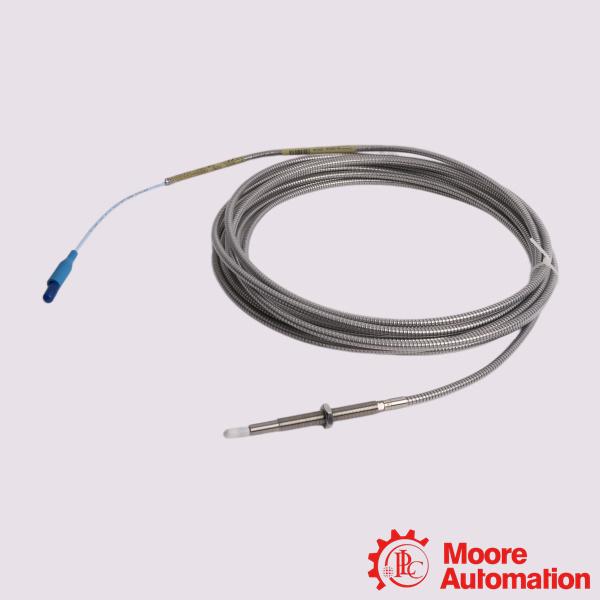

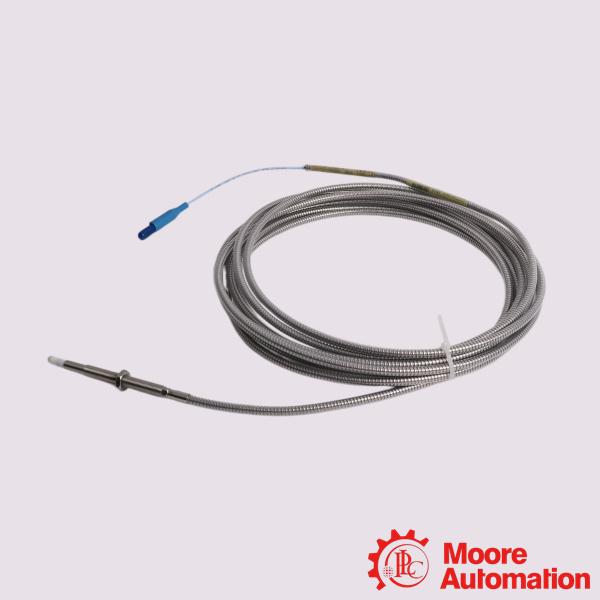

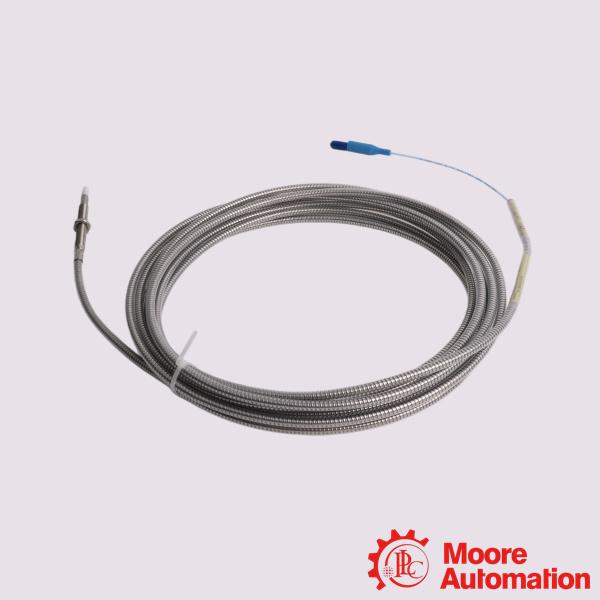

The Bently Nevada 330910-00-03-05-01-00 is a 3300 NSv Proximity Probe primarily targeted at industrial rotating machinery with tight installation spaces or small targets. It is widely used for asset condition monitoring on fluid-film bearing machines to track radial vibration, axial thrust position, and tachometer/speed measurements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:Can I use this to replace older Bently Nevada hardware?

A:Yes. The 3300 NSv line directly replaces legacy 3300 RAM Transducer Systems as well as older 3000-series or 7000-series 190 systems. If you upgrade from 3000 or 7000 series systems, remember that you must replace the probe, extension cable, and preamplifier together.
Q:Can I trim or modify the 0.5-metre cable length?
A:No. Altering the cable length will compromise calibration. The entire transducer loop—consisting of the probe, extension cable, and Proximitor—forms a finely tuned electrical length. Adjusting it changes the system impedance and skews accuracy.

Q:Can this probe be used on very small shaft targets?
A:Yes, it is ideal for small target applications. It handles radial vibration measurements on shafts smaller than 51 mm (2 in) and axial measurements on flat surfaces smaller than 15 mm (0.6 in). For shafts below 13 mm (0.5 in), watch out for minor scale factor changes.
