in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.8x1.6x69cmWeight:
0.14kgCountry of Origin: :
USADescription:

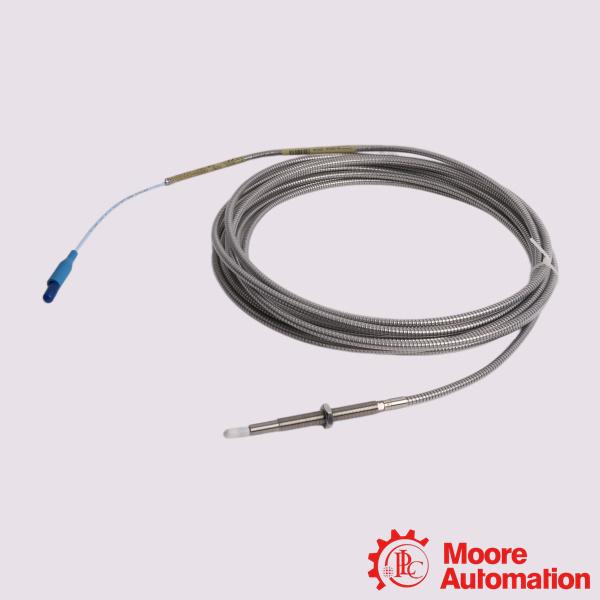

Bently Nevada 330910-00-03-05-01-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330910-00-03-05-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: [email protected]
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330910-00-03-05-01-CN is a 3300 XL NSv Proximity Probe for vibration and displacement monitoring on small-scale rotating machinery. Its design prioritizes tight installation constraints, such as tight side-view clearances, counterbores, or compact targets. The "CN" suffix explicitly certifies it for compliance and use within industrial environments in China.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Frequently deployed by Original Equipment Manufacturers (OEMs) to monitor high-speed rotor vibration and axial thrust position within tight internal clearances.
Refrigeration Compressors: Integrated into large-scale commercial chillers and cooling loops to track radial shaft stability and prevent catastrophic mechanical breakdowns.
Process Gas Compressors: Extensively utilized in chemical and petrochemical facilities to provide predictive maintenance data on machinery running volatile or high-pressure gases.
Small Pumps & Motors: Ideal for auxiliary industrial pumps and driving motors where small shaft diameters or constrained housings prevent standard 5mm or 8mm proximity probes from mounting correctly.
Frequently Asked Questions (FAQ)
Q:What is the linear range of this proximity sensor?
A:The linear range begins approximately 0.25 mm (10 mils) away from the observed target face. Ensure your electrical gap is set correctly using a digital multimeter or a static calibrator during installation to stay well within its defined linear measurement bounds.
Q:Is this probe backwards compatible with older Bently Nevada hardware?
A:The 3300 NSv probe is mechanically and electrically interchangeable with the legacy 3300 RAM series. If you are replacing an old 3300 RAM probe, you can use your existing extension cable and monitor. However, if you are upgrading a 3000-series or 7000-series system, you must swap out the probe, extension cable, and the Proximitor sensor entirely for NSv components.
Q:Can this probe be used on very small shafts?
A:Yes, it is explicitly optimized for small targets. It can accurately measure targets down to 15 mm (0.6 in) for axial position and shafts smaller than 51 mm (2 in) for radial vibration. However, if your shaft diameter drops below 13 mm (0.5 in), you should expect a change in the scale factor.
If you need other brands products like below, please feel free write email to [email protected]
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330910-00-03-05-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
30 mm |
|
Total Length Option |
5.0 meters (16.4 feet) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
